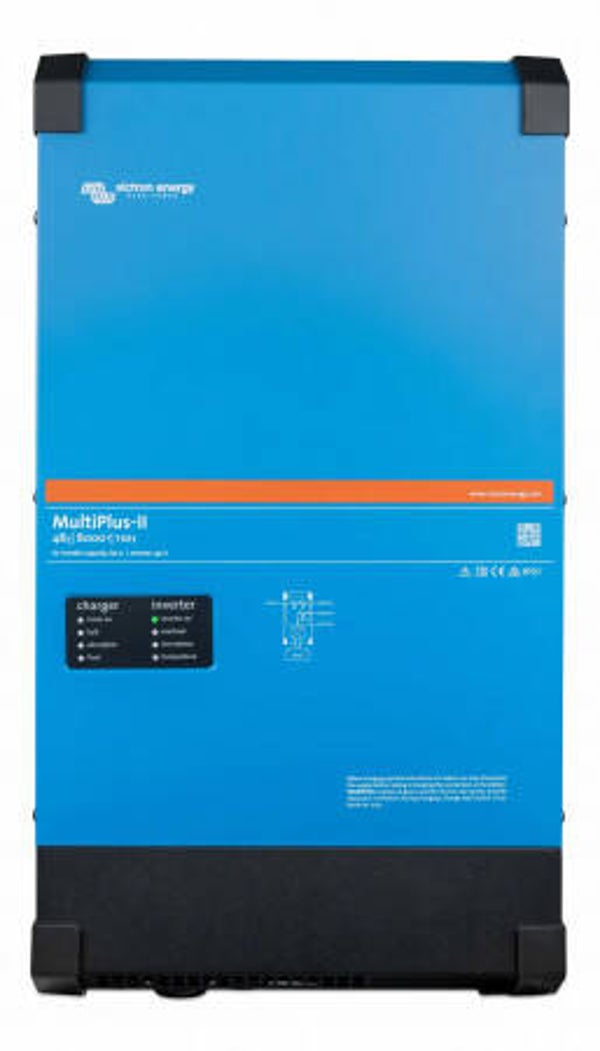

Victron Multiplus II, 10.000 VA

The Victron MultiPlus-II 10000VA 48V 140+100A inverter is an advanced device for photovoltaic installations, enabling the creation of a hybrid self-consumption system with energy storage and full operational reliability. Like all products in the Victron MultiPlus range, the MultiPlus-II series is a multifunctional inverter-charger that holds numerous electrical certifications for use in many countries, allowing it to operate as a grid-connected Energy Storage System (ESS).

The MultiPlus-II model, previously known as the MultiGrid II, also incorporates anti-islanding protection as well as Victron’s PowerControl and PowerAssist functionalities. The Victron MultiPlus-II 10000VA 48V 140+100A inverter-charger delivers exceptional reliability and stability thanks to its advanced power-stage design.

This inverter provides up to 10,000 VA of continuous output power. With the PowerAssist function, it can supply additional output power by combining energy from the AC input and the battery bank, preventing overload of the external grid or generator connection. The unit operates with 48V battery systems and includes a powerful 140A integrated battery charger.

Thanks to its UPS functionality, the inverter ensures uninterrupted power output with extremely fast transfer times, so critical loads remain unaffected during power outages. Like other MultiPlus models, it offers excellent scalability, supporting parallel operation of up to six units. It can also be configured for three-phase systems by installing one unit per phase, with the option of parallel operation within each phase for increased capacity.
